    TWRP for Lenovo Tab 4 10 Plus (tb_x704) is now available from an unofficial build. this post guides you how to download and install TWRP for Tab 4 10 Plus and also guides you how to ROOT Lenovo Tab 4 10 Plus (using TWRP recovery).

    The TWRP download for Tab 4 10 Plus is brought to you by developer(s) Matshias

    DISCLAIMER:
    THIS IS AN INITIAL UNOFFICIAL TWRP FOR Tab 4 10 Plus. FLASH AT YOUR OWN RISK.
    INSTALLING THE TWRP FOR Tab 4 10 Plus NEEDS AN UNLOCK BOOTLOADER ON Tab 4 10 Plus.
    DURING THE BOOTLOADER UNLOCK PROCESS ALL THE PHONE DATA WILL BE ERASED.

    Lenovo Tab 4 10 Plus ROOT MAY BRICK THE PHONE.
    MAKE SURE YOU READ THE ADVANTAGES AND DISADVANTAGES OF ANDROID ROOT BEFORE YOU PROCEED FURTHER.

    Before proceeding further you may consider backup all data on the phone.

    You are the only person making changes to your phone and I cannot be held responsible for the mistakes done by you.



    Lenovo Tab 4 10 Plus TWRP and Root Guide

    DOWNLOAD LINK OF TWRP FOR Tab 4 10 Plus, OTHER DOWNLOADS AND REQUIRED GUIDES:



    STEP BY STEP GUIDE OF HOW TO DOWNLOAD AND INSTALL TWRP FOR Lenovo Tab 4 10 Plus:



    1. Connect the Tab 4 10 Plus to the PC using the USB cable and install required USB driver
    2. Install 15 Seconds ADB Installer or Minimal ADB and Fastboot for Windows or Linux or MAC as per the PC you have
    3. Reboot the Tab 4 10 Plus into bootloader mode and Unlock bootloader of Tab 4 10 Plus
    4. Then, on your PC, go to the directory where you have downloaded the TWRP for Tab 4 10 Plus and then open the command console or terminal on this directory on your PC.- To open a command window on Windows OS in the current directory, press shift + Right Click anywhere on Windows explorer, or some folder. Then on the menu opened, just press the “w” key on the keyboard or select “Open command window here” to open a command window.
    5. Now connect your phone to the PC using a USB cable, if not connected yet.
    6. Enter the following command on the opened command window:
      adb reboot bootloader

      to put your phone into bootloader mode where you can flash/install TWRP for Tab 4 10 Plus.
      If your phone asks for permission; such as “Allow USB debugging” then just tap on OK to proceed.

    7. Now when your phone is on the bootloader mode just execute the following command on the console:
      fastboot flash recovery twrp-3.2.x.x-xxx.img

      While executing this command make sure to replace the twrp-3.2.x.x-xxx.img with the actual filename of the TWRP for Tab 4 10 Plus

    8. Wait for the fastboot command to install the TWRP for Tab 4 10 Plus.
      Once it is done, execute the below command:

      fastboot reboot recovery

      on the command console to start the phone in TWRP recovery mode.

    That’s all. You should have the TWRP installed on your Tab 4 10 Plus. You may now want to ROOT Tab 4 10 Plus or may want to install some custom ROM or want to explore what else can you do with this TWRP? Head over to the following section to know more.

    What to do after you install TWRP for Tab 4 10 Plus:

    • You can enable Tab 4 10 Plus ROOT access
    • You can install one of the custom ROMs available for Tab 4 10 Plus
    • You can install some of the mods available for Tab 4 10 Plus

    Well, this isn’t it. You can install customized themes, sound mods, Xposed modules etc. after installing the TWRP for Tab 4 10 Plus.
    TWRP recovery is the gateway to many goodies for your phone.

    Now, if you want to ROOT the Tab 4 10 Plus then below is a step-by-step by guide on how to ROOT Tab 4 10 Plus.

    REQUIRED DOWNLOADS OR LINKS FOR Tab 4 10 Plus ROOT GUIDE:

    • Make sure you have already unlocked the bootloader and installed TWRP for Tab 4 10 Plus
      – Well, this is a very important aspect to enable ROOT for Tab 4 10 Plus. The SuperSU zip file is developed in a way to be installed via a TWRP recovery or other custom recovery. Stock recovery may not be able install this SuperSU or Magisk ROOT on Tab 4 10 Plus.
    • Download the latest SuprSU ROOT for Tab 4 10 Plus or one of the following:



    IMPORTANT NOTE:
    • The Tab 4 10 Plus will not be rooted just by installing the SuperSU APK file on your Android phone.
    • SuperSU APK Free or Pro version is just a SuperSU ROOT management application.
    • The SuperSU APK Free or Pro app will ONLY work if you have already ROOTED your Android Phone.



    Step-by-Step guide on how to ROOT Tab 4 10 Plus using SuperSU or Magisk zip file:



    1. Download and copy the SuperSU or Magisk ROOT file to Tab 4 10 Plus. (I hope you have already downloaded the SuperSU zip file from the above downloads section)
    2. Now restart the Tab 4 10 Plus to boot into TWRP recovery.
    3. Then, Select the Install from TWRP home screen, then select the SuperSU ROOT zip file from the file browser.

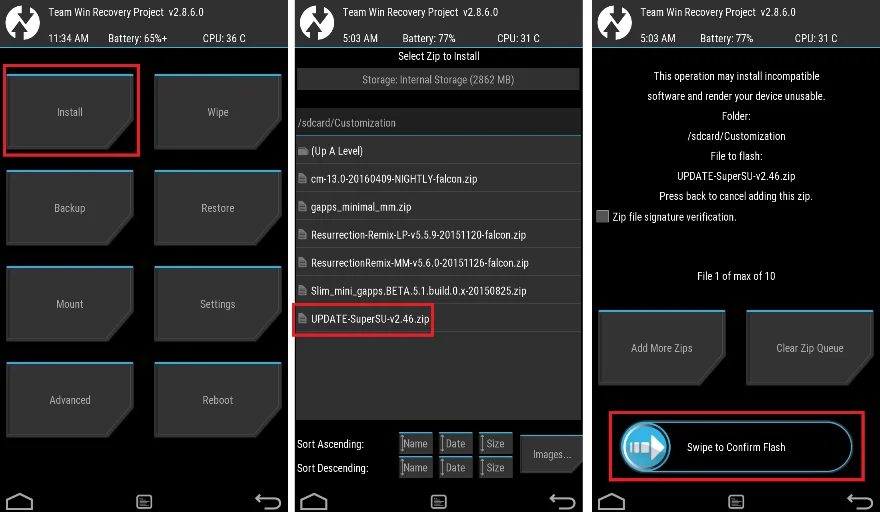

    4. Flash or install the SuperSU or Magisk zip file for Tab 4 10 Plus, by Sliding the Swipe to Confirm Flash on TWRP screen.Here is a screenshot how to flash the SuperSU ROOT for Tab 4 10 Plus via TWRP:

      Flash SuperSU ROOT for Tab 4 10 Plus via TWRP

    5. Wait for TWRP to flash the SuperSU or the Magisk. Once the flashing is done just reboot your device.
    6. Profit!!! You should now have a Tab 4 10 Plus ROOT enabled phone.

    How to check if ROOT is enabled on Tab 4 10 Plus or NOT?

    Install the ROOT checker app from the Play Store and verify if your phone is ROOTED or not.

    If you face any problems on this guide to install TWRP for Tab 4 10 Plus or to following the Tab 4 10 Plus root guide then, you can login and reply here. Either me or some other user on this forum will reply back to your query as soon as possible.

    Stay tuned or Subscribe to the Lenovo Tab 4 10 Plus (tb_x704) forum For other Android Custom ROMs, Lineage OS ROMs, and all other device specific topics.



    #40150
    Linux User
    Participant

    I tried using twrp-3.2.2-0-tb_x704l.img on my Lenovo Tab 4 10 Plus ZA2T TB-X704V, but it did not work. My tablet just booted back up normally. Maybe this would work on a TB-X704L, but it does not work on a TB-X704V.

    #40806
    Linux User
    Participant

    Looks like it did not boot into recovery at all.

    @paul_nickerson Can you boot into recovery and see what image is flashed into the recovery partition and let me know ?
